Product introduction

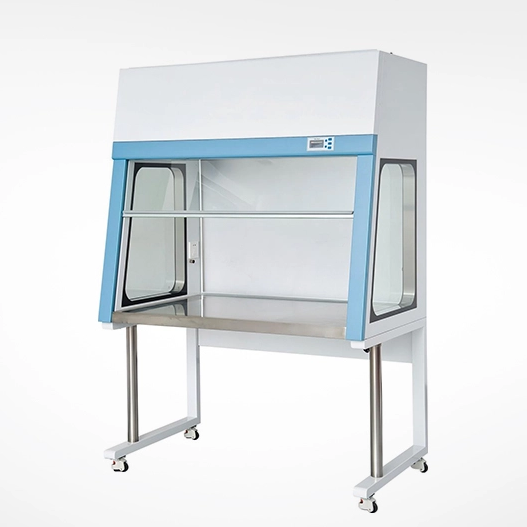

The vertical flow clean workbench is an airflow protection device that provides a local clean environment. It uses fans and filters to continuously transport vertical unidirectional airflow into the work area to form a positive pressure difference between the operating area and the outside, thereby protecting the reagents and samples in the operating area from external airflow contamination. It is widely used in water quality testing, food testing, precision instruments, instrument testing, plant tissue culture inoculation and other industries.
Features
1. The cleanliness reaches level 100, air flow form: vertical flow and unidirectional flow.
2. The upper and lower sliding windows can be hovered at any position to prevent external airflow from affecting the cleanliness of the work area.
3. The controller has wind speed adjustment and sterilization timing functions.
4. Stainless steel operating table, easy to clean.
5. Equip lighting to ensure sufficient working illumination in the work area.
6. Equipped with ultraviolet germicidal lamp to kill microorganisms and bacteria on the countertop.
Product model and parameters
| Specifications MODEL | CB-1500V-X | CB-1800V-X | CB-2000V-X |
| Overall dimensions (WxHxD) (mm) fal size | 1500*710*1930 (mm) | 1800*760*193 (mm) | 2000*760*1930 (mm) |
| Working area size (WxHxD) (mm) Working area size | 1380*650*750(mm) | 1680*720*750 (mm) | 1880*720*750 (mm) |
| Air volume (m3/h) Rate Air volume | 800 | 1350 | 1850 |
| Wind velocity | 0.25~0.6m/s±20% | ||
| Purification rankPurification rank | Class 100~100 (ISO14644-1 International standard) | ||
| High efficiency filter efficiencyHEPA Efficiency | 99.99%@0.3um | ||
| High efficiency filter size (mm) HEPA SIZE | 1370*500*90 (mm) | 1670*570*90 (mm) | 1870*570*90 (mm) |
| High efficiency filter quantityHEPA quantity | 1 | 2 | 2 |
| Bench vibration half-peak | The bench and the overall frame are separated without vibration effect (optional) | ||
| Countertop materialCountertop material | 304 Sand polished stainless steel304 Sand polished stainless steel | ||
| NoiseNoise | <55dB | <55dB | <55dB |
| Noise test location Noise test location | + a distance of 20cm from the front of the table and a height of 1.2m from the bottom. | ||
| Power supply | 220V AC 50Hz | ||
