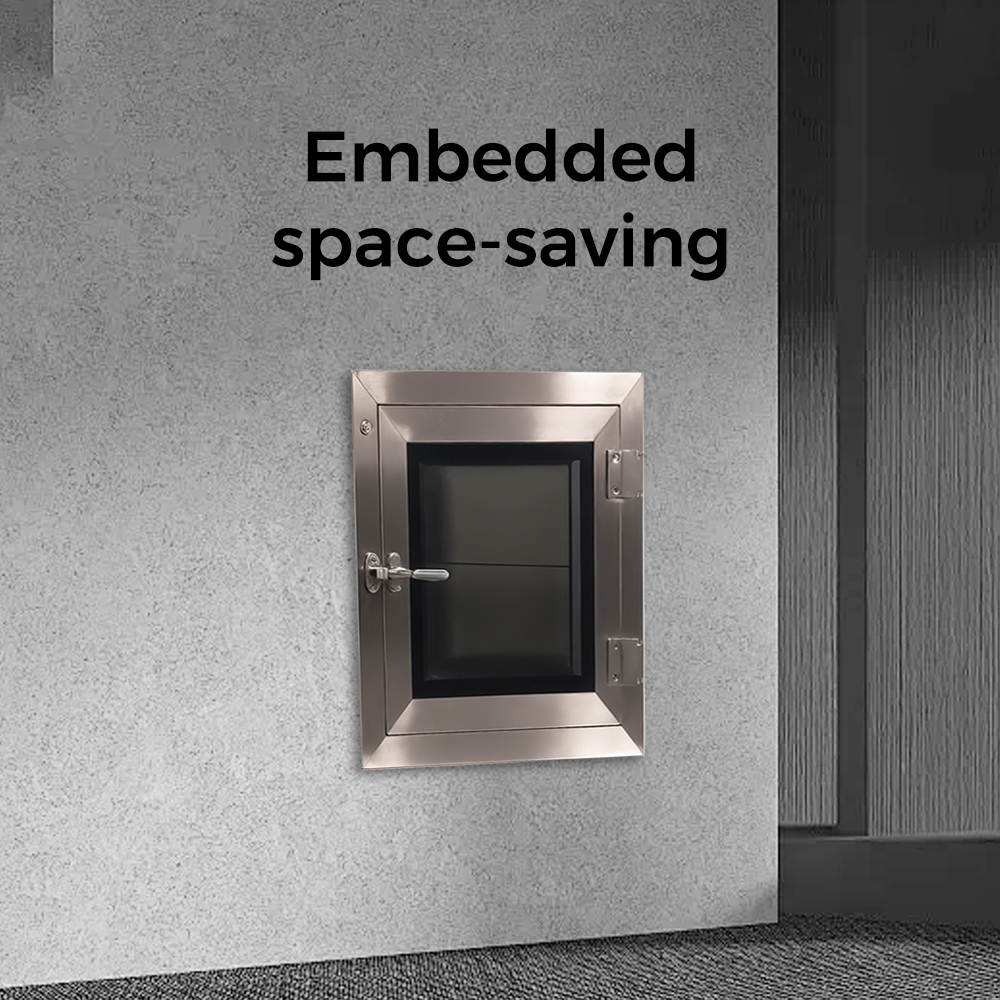

Transfer window

The transfer window is an airflow isolation device in a clean room that ensures that items are transferred to avoid cross-contamination. Its interlocking function ensures that when any one of the inner and outer doors is opened, the other door is locked and protected, thus avoiding cross-contamination of airflow in two rooms with different levels. It is equipped with an ultraviolet germicidal lamp inside, which can effectively kill microorganisms or bacteria that enter the inner tank of the transfer window and maintain a clean environment in the inner tank. It is widely used in hospitals, pharmaceutical factories, biological laboratories, cosmetics factories, electronics industry, food processing industry and other places.

Features:

1. The built-in door structure does not have the disadvantages of dust accumulation above the door body of the external door structure, making it easier to maintain the clean room environment.

2. The one-piece door panel structure does not have the disadvantage of poor air tightness at the joint position of the square tube door structure, and is conducive to maintaining the air tightness between the two rooms.

3. The special slot-type door panel sealing strip is stronger and more durable after installation, and does not have the disadvantages of adhesive sealing strips aging and falling off.

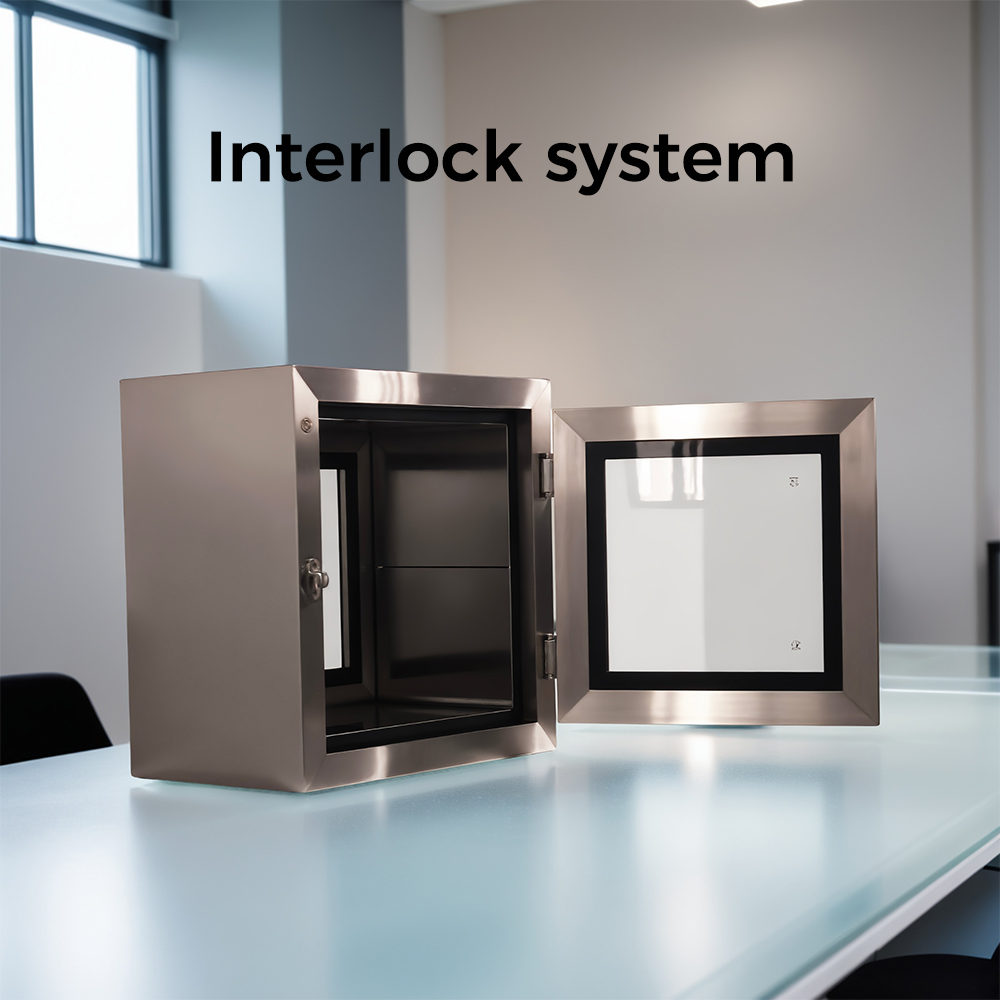

4. Mechanical interlocking and electronic interlocking can be selected according to usage requirements.

5. Different corner styles and door opening directions can be customized according to the site layout.

6. According to the requirements, the inner and outer 304 stainless steel materials, the inner stainless steel outer steel plate spray materials can be selected.

7. Intercom phones can be added according to usage needs.

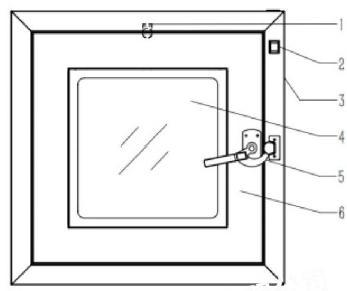

Structural diagram

1. Germicidal lamp 2. Germicidal lamp switch 3. Cabinet 4. Glass window 5. Handle 6. Door body

Optional configuration:

a. Intercom device b. Stainless steel inside the outer environmental protection panel c. Hinge d. Mechanical interlocking/electronic interlocking e. Number of germicidal lamps f. Germicidal lamp time controller and other configurations
