Product introduction:

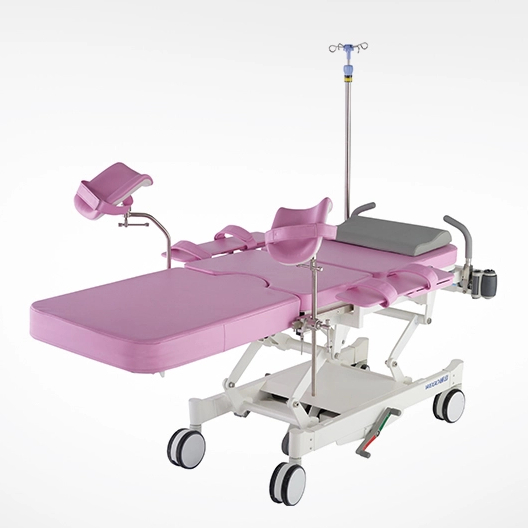

This gynecological diagnosis and treatment bed is tailor-made for assisted reproductive clinical scenarios and is deeply adapted to core operations such as egg retrieval, embryo transfer, gynecological examination, and ovulation monitoring in reproductive centers. It takes ergonomic design, precise operation adaptation, safety protection upgrades, and convenient and efficient operations as its core advantages. It takes into account the professionalism of clinical operations, the comfort of patient experience, and the efficiency of department operations. It is the preferred diagnostic and treatment equipment for the standardized construction of assisted reproductive departments.
The main frame of the equipment is made of medical-grade thickened steel, which has undergone multiple anti-corrosion and anti-rust treatments. It has strong load-bearing capacity and is durable, adapting to the diagnosis and treatment needs of patients of different sizes. The bed is adjusted using a high-precision electric push rod system, which can achieve multi-dimensional stepless adjustment of bed lifting, backboard tilt, and leg rest opening and closing, accurately positioning the golden operating angle for egg retrieval/transplantation, and the adjustment process is smooth and noiseless, avoiding interference from changes in body position on clinical operations, and greatly improving the accuracy of doctor's operations.
In response to the special needs of assisted reproductive diagnosis and treatment, the bed is equipped with medical waterproof, antifouling and antibacterial PU soft cushions. The seamless design is easy to clean and disinfect, effectively reducing the risk of cross-infection, and conforms to the sterile diagnosis and treatment standards of reproductive centers. The leg rest adopts a reversible ergonomic design and is equipped with adjustable anti-slip pedals to fit the physiological curve of the patient's legs, relieve limb fatigue from long-term diagnosis and treatment, and improve the patient's medical experience. Detachable medical armrests are installed on both sides of the bed, which can not only facilitate patients to get in and out of the bed, but also serve as auxiliary support for doctors to optimize the operation flow.
Features:
1. Extreme stability and anti-interference design
2. Independent fine-tuning and memory functions
3. Full comfort and warmth
4. Sterile and easy-to-clean design
5. Comprehensive security features
6. Intelligent surgical station integration

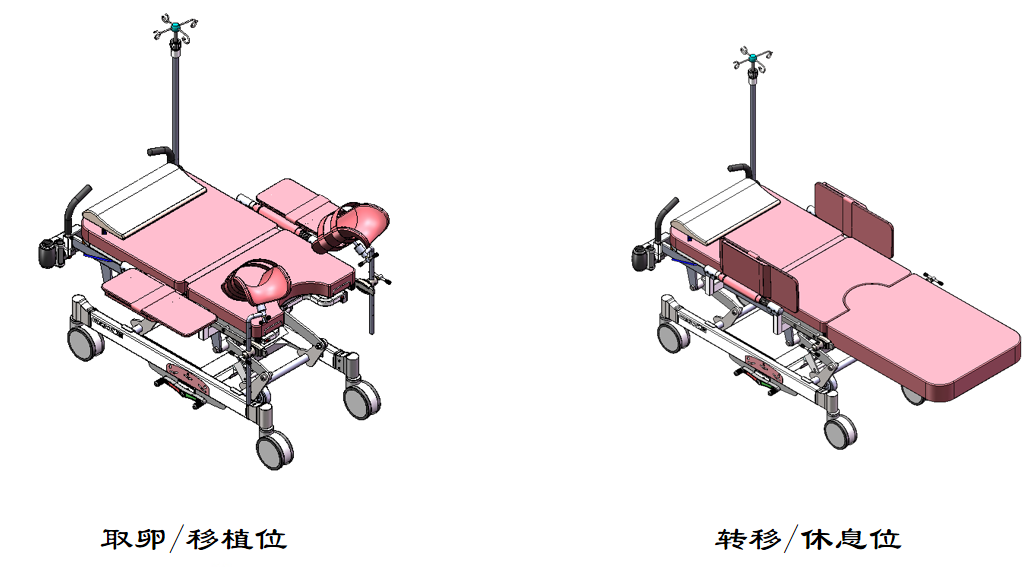

Functional conversion diagram
Product model and parameters
| Main material | The whole bed is made of high-quality carbon steel structure, and the guardrails are made of phenolic paper laminate + PU. |
| Bed size (length × width) | 1880mm±100mm×600mm±80mm |
| Bed surface lifting range | (500mm~800mm)±50mm |
| Guardrail size (length × height) | (605mm±150mm) length × (150mm±50mm) height |
| Back plate folding angle | The foldable angle range is 90-(50° ±10°) |
| Hip plate turning angle | The folding angle range is 90-(20° ±5°) |
| Leg frame translation distance | 704mm±10mm |
| Caster size | 150mm±20mm |
| Infusion stand size | 870mm±60mm~1700mm±100mm |
| safe load | 150kg |
| Backplane motor parameters | Model: 150/325 6000IV DC24V |
| Hip plate motor parameters | Model: 40/270 3000IV DC24V |
| Overall lifting motor parameters | Model: 150/480 6000IV DC24V |
| Power cord length | 3m |
